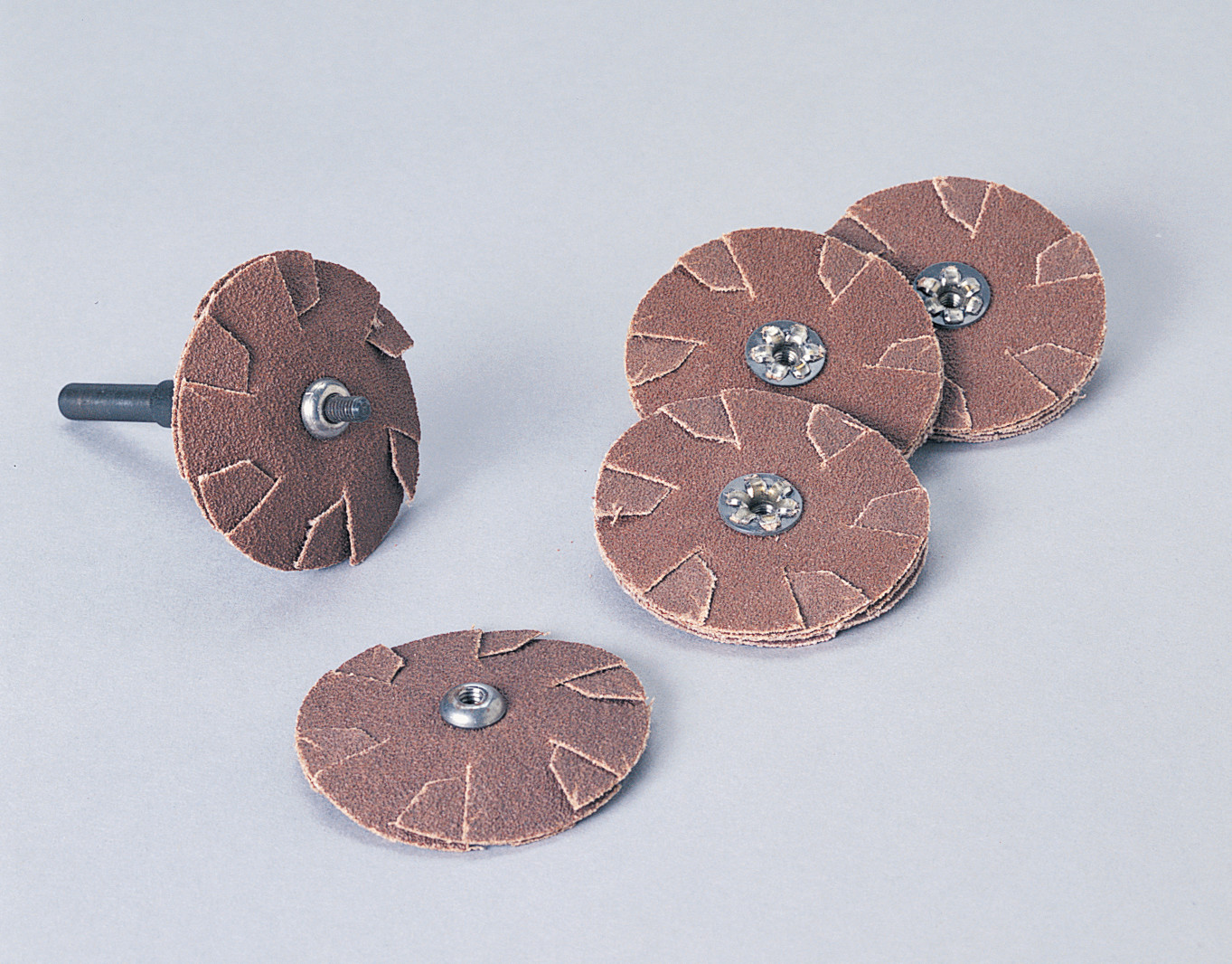

Standard Abrasives™ Aluminum Oxide Overlap Disc, 713266, 100, 2 in x 8-32 x 2 Ply, 100 ea/Case

Coverage of Internal Diameters
For internal diameters that require increased coverage over a cross pad, the Standard Abrasives™ Aluminum Oxide Overlap Disc is a good option. The overlapping construction makes the disc flexible so that the operator can push it into a hole or tube and achieve full contact with internal diameters. Discs with four layers achieve abrasive action in both push and pull directions.

Aluminum Oxide for Metals, Rubber, Plastic and Composites
Aluminum oxide discs are a good match for operators who desire an all-purpose versatility and economy. The mineral cuts fast while blending and deburring and is a good choice for applications on many substrates including ferrous metals, rubber, plastic and composites.

Running an Overlap Disc
For the convenience of tool-free disc changes, overlap discs have a threaded eyelet arbor hole that screws onto a mandrel and is secured by hand with an attachment bolt (both available separately). A shorter mandrel allows for a steadier application, while a mandrel with extended reach allows access deeper into pipe interiors. Compatible threaded Standard Abrasives™ Mandrels are available separately with thread sizes of 8-32, 3-48, and 1/4-20. An extended version is available with 8-32 threads.

• Overlapped construction compresses contact with internal radii, holes, and cylinder walls
• Sets of 2 discs are used for push applications while 4 discs are used for push and pull
• Stacked discs supply a firm, aggressive cut
• Useful for light to medium deburring, polishing, cleaning, blending and chamfering applications
• Effective on all steels, rubber, plastic and composites
• Cloth backing provides added durability to resist tearing and fraying
