All Products>MODEL PMCT-HD-2-284 - 96 inch sanding and polishing machine

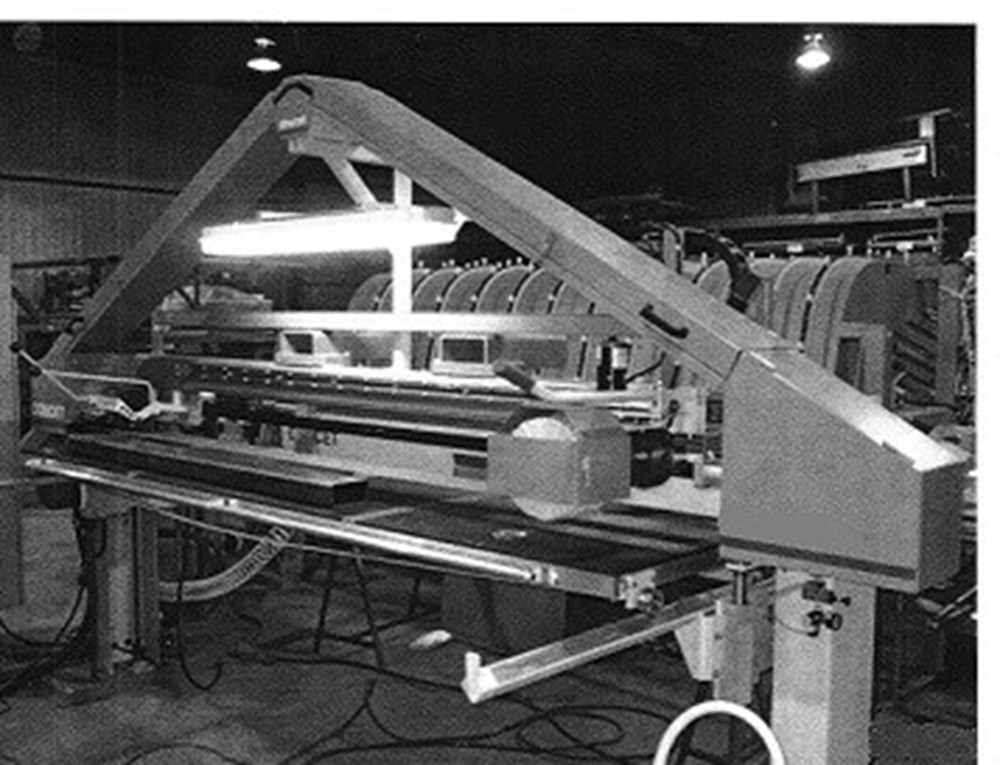

MODEL PMCT-HD-2-284 - 96 inch sanding and polishing machine
Product ID: M08095
$38,200.00
QTY:
Product Description
Built around a fully welded structure, for a long lasting durability, it features dust hoods on both sides, a table with steel rollers and virtually wear free balanced and quiet running aluminum pulleys with sealed ball bearings.
Options:
Polishing buffer wheel with linear rail including a 3HP motor with variable speed, carriage, handle bar, control panel and electrical cable tray. Belt of 284 " on a triangular path.
Installation supervision service and training are not included in the price of the equipment.
Product Features
5 H.P. T.E.F.C. motor, 1750 rpm
Voltage: 220 or 440 I 3 I 60, 17 amps
Pulleys: 10" dia. X 6.25" face
Table size: 30" wide X 96" long
Table weight capacity: 1000 lbs.
2)Abrasive belt: 6" X 284", 4750 F.P.M.
Table covered with HOPE plastic surface
Motorized vertical table adjustment
Travelling bar included
Dust collector outlet: 2 X 6" diameter @ 2400 cfm
Optional Features:
7.5 hp vs 5 hp:
$700.00/ea
Variable speed for a 5HP Motor:
$4,100.00/ea
Contact Wheel Assembly:
$3,200.00/ea
Graphite Glove Right Hand:
$10.86/ea
Graphite Roll 6" X 2 yds:
$22.71/ea
Hand Block 6 X 9:
$424.00/ea
Additional Options:

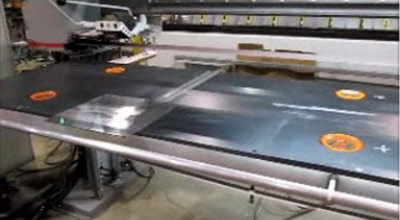

Vacuum Cup to hold parts
$4,600.00
Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold,
