All Products>The Progress PMC-312-6-HD Model is a 120 inch sanding and polishing machine

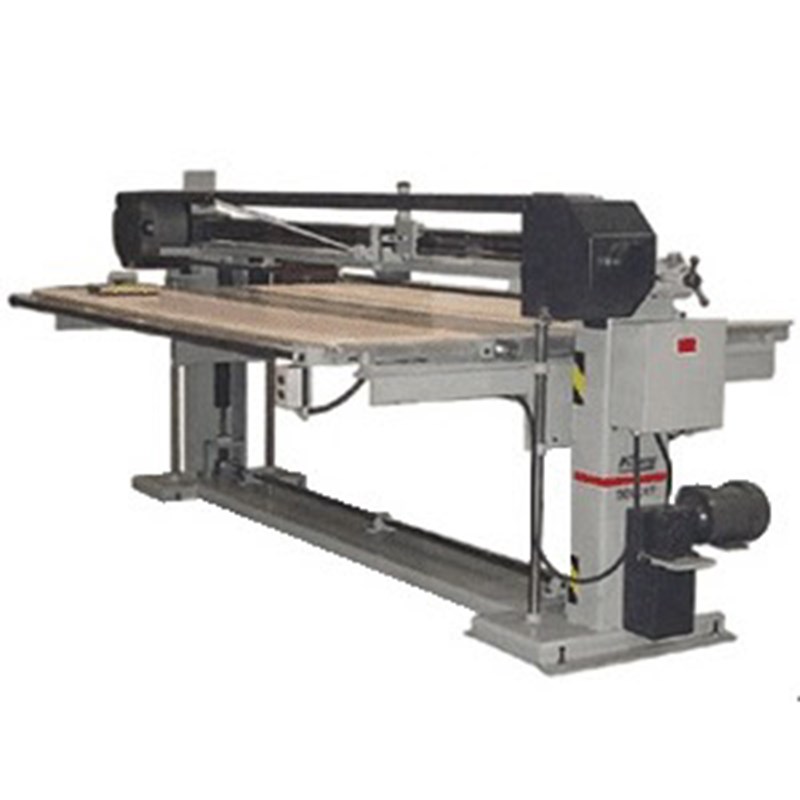

The Progress PMC-312-6-HD Model is a 120 inch sanding and polishing machine

Product ID: M08025HD
$25,500.00

QTY:

Product Description

Built around a fully welded structure, for a long lasting durability, this machine features dust hoods on both sides, a table with steel rollers and virtually wear free balanced and quiet running aluminum pulleys with sealed ball bearings.

The Waters Industrial Stroke Sander can put a number of different finishes on flat metal surfaces.  The stroke sander operates by utilizing an abrasive belt on a flat metal surface. Feed wheels send your part along the guide rails through the feed area. The drive wheel runs on a 3-phase, five HP motor. A tensioning wheel adjusts the tightness of the belt to reduce or increase the grinding action.  The Waters Industrial Stroke Standard comes with a hand block to apply manual pressure on the belt and the work piece, else an optional contact wheel attachment can apply strong, steady pressure.  This stroke sander comes in models of 5 different table sizes , including 48”x28”, 72”x28”, 100”x30”, 128”x30”, and 144”x30”. Browse our entire selection of quality stroke sanders and check out our M08075 steel plate grinder.

Stroke Sander Videos
View this machine in action!
Product: M08025HD

Product Features

Model PMC-312-6-HD
Pulleys 10" dia x 6.25" face
Table Size 30" long x 120" wide
Abrasive Belt 6" x 312", 4750 FPM
Electrical Equipment:

* 5 HP TEFC motor
* 1750 rpm

Aluminum table covered with HDPE plastic surface
Motorized vertical table adjustment
Reinforced Frame
Oversized Traveling Bar
Table Capacity: 1000 lbs

OPTIONAL FEATURES:

7.5HP vs 5HP $700.00/ea
Variable speed for a 5HP Motor $4100.00/ea
Contact Wheel Assembly $3200.00/ea
Graphite Glove Right Hand $11.40/ea
Graphite Roll   6” X 2 yds $22.86/ea
Hand Block  6" X 9" $424.00/ea
Pneumatic Tensioner

(recommended for applications with frequent changes of belts)

$1200.00/ea


Additional Options:

Vacuum Cup to hold parts $4,600.00
Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold,

1 selector to start/stop vacuum


ABRASIVE BELTS:

Size Grit Pkg Size Stainless Steel
6x312 80 20 Yes
6x312 120 20 Yes
6x312 Scotch-Brite™ AM 1 Yes
6x312 A100 10 Yes
